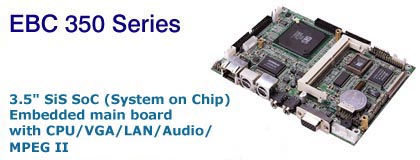

Specifications

Form Factor

• 3.5” size drive foot-print

• PCI V2.2 compliant

• Integrated x86/MMX compatible processor

• Max. 512MB SDRAM memory, 144-pin SO-DIMM x1

• Award system BIOS. APM(Advanced Power Management) support.

• ACPI(Advanced Configuration & Power Interface) support.

• Optional software shutdown and wake on LAN function(5Vsb power is required).

• 4M bits flash ROM

• On-board SiS55x SoC(System-on-Chip)

• AGP 4X compliant / fully DirectX 8 compliant.

• Supports shared system memory up to 128 MB.

• 128-bit 2D engine with a full instruction set.

• 2 Independent Overlay Windows with blending/scaling functions.

• Supports OSD/PIP/EPG and dual view functions.

• Optional TV-out and LVDS LCD interface

  • for EBC350A/EBC350LT only- Cooperate with “SiS301LV video bridge” to support NTSC/PAL video output, LVDS LCD

  • Supports two independent video Window with overlay function and scaling factors

  • RCA TV-out & S-video output

• Optional Advanced H/W MPEG II Hardware accelerator - for EBC350A only

  • SiS552 SoC supports this function- Optional DVD accelerator: MPEG

  • 2 ISO/IEC 13818-2 MP@ML and MPEG-1 ISO/IEC 11172-2

• ADMTek AN983B Ethernet LAN portx1.

• Full duplex compliant with IEEE802.3X.

• Boot from LAN function.

• Wake-up from LAN

• USB portx2.

• Buzzerx1.

• Audio Interface:
  Internal - CD audio-in, Line-in,
  External -Microphone-in, speaker-out(Amplifier 1.5W)

• RJ45 with LED connector x1.

• Video: CRT DB15 x1.

• TV-out portx1.

• HDD: Ultra DMA 33/66/100 support; 44-pin connectorx1 .

• Internal Compact Flash socketx1.

• Serial port: SIO(compatible 16C550)x2, 10-pin headerx2, support RS232/422/485.

• Parallel port: PIO x1, 26-pin connector support EPP/ECP.

• Slim FDD controller: 26-pin connectorx1.

• PS/2 keyboard/Mouse: 6-pin mini DIN connector.

• Digital I/O: 8xTTL DIO.

• I²C: 3-pin headerx1 (one pin for GND).

• Reset SW: 2-pin headerx1.

• IDE active LED: 2-pin headerx1.

• ATX power SW: 2-pin headerx1.

• Power cable connected to panel(5V or 3V):3-pin powerheaderx1.

• 2-pin IDE Active LED headerx1

System Monitor

• Super I/O support system monitor.

• 5 voltage(for +3.3V, +5V, +12V, Vcore and +2.5V).

• Monitor CPU temperature .

• Driver support: Window® 95/98/2000, Windows NT4.0/2000

• On-chip RTC back-up battery x1.

• External Li-Ion batteryx1

• Watchdog timeout programmable from 1 to 255 second/minute

• Mini-PCI socket

• 143mm(L)x102mm(W)

• AT mode:

  • 2-pin power input connector.

  • Power cable: big 4P to 2P(5V, GND)

  • PIN Define	Voltage	Power Requirement
    PIN 1	+5V	4A (typical)
    PIN 2	GND



• ATX mode:

  • 3-pin header to select AT or ATX mode.

  • 2-pin header for power switch button.

  • On-board 3-pin Jst connector to receive the 5Vsb, PS_ON, GND.

  • Power cable: ATX power connector to 2P(5V, GND)+3-pin(5Vsb, PS_ON, GND)

  PIN Define	Voltage	Power Requirement
  PIN 1	+5V	4A (typical)
  PIN 2	GND	--
  3 PIN	Jst +5Vsb	1A(typical)

  　

• Environments

  • Operating temperature: 0°C to 60°C.

  • Storage temperature: -20°C to 80°C.

  • Relative humidity: 10% to 90%(Noncondensing)

• Operating temperature: 0°Cto 60°C

• Storage temperature: -20°C to 80°C

• Relative humidity: 10% to 90%(noncondensing)

• CE

• FCC

Order Information

     3.5” Low Power Embedded Board w/SIS Soc550/ TTL LCD / Audio/LAN x1

 EBC 350LT

3.5” Low Power Embedded Board w/SIS Soc550/ TTL LCD / LAN x1 / T out /Audio / LVDS LCD / Dual Display Support

 EBC 350A

3.5” Low Power Embedded Board w/SIS Soc552/ TTL LCD / LAN x1 / TV out /Audio / LVDS LCD/ Dual Display Support / MPEG II Hardware DVD Accelerator
